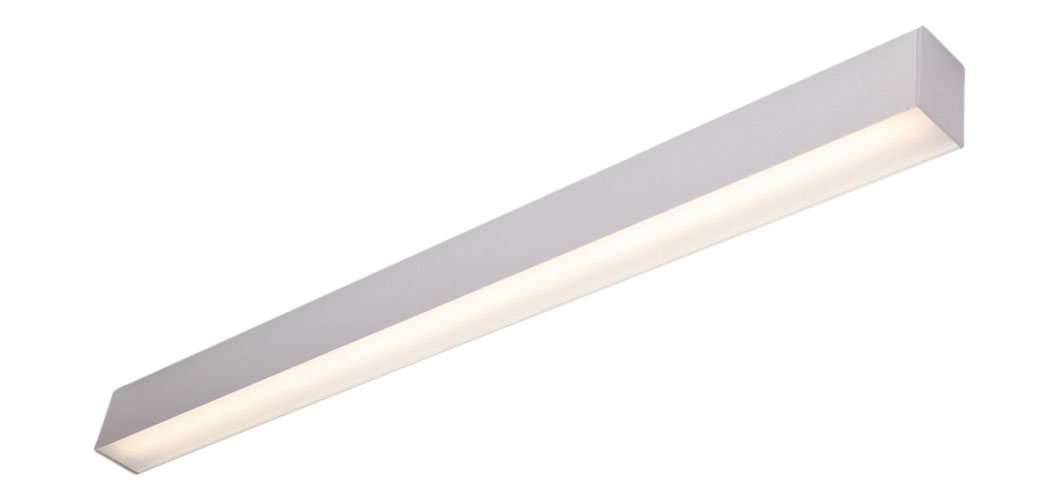

STRIA CEILING

SYSTEMS - SLOTS

Individual or continuous ribbons of light

Specification Details

Mounting

  • Ceiling and wall options
  • Individual or continuous lines

Housing

  • Die extruded aluminium profile
  • Die cast aluminium end caps
  • System configurable
  • IP20

Photometrics and Optics

  • Direct
  • Flat Opal PMMA Optic (FO)
  • Dropped Opal PMMA Optic (DO)

Light Sources

  • LED - SMD
  • LED - Static White ( 3000K & 4000K )
  • LED - Tunable White ( 2700K - 6000K )
  • CRI ≤ 85

Installation

  • Surface mounting brackets

Electrical

  • AC 110-240V

Colours

  • Factory proprietary white
  • Factory proprietary silver grey
  • Black

1. Range: STRIA LED

2. Mounting options & Dimensional details

Ceiling

3. Photometric Distribution

Direct

4. Optics

Opal

5. Lamp Options

LampDimensionsCCT
Vers.CodeWattageTypeLumens (lm)LWHCCT (K)
FO18.83018LED1647113068903000
FO18.84018LED1647113068904000
FO27.83027LED2471169068903000
FO27.84027LED2471169068904000
FO36.83036LED3450113068903000
FO36.84036LED3450113068904000
FO55.83055LED5175169068903000
FO55.84055LED5175169068904000
DO18.83018LED19671130681003000
DO18.84018LED19671130681004000
DO27.83027LED29511690681003000
DO27.84027LED29511690681004000
DO36.83036LED38031130681003000
DO36.84036LED38031130681004000
DO55.83055LED57041690681003000
DO55.84055LED57041690681004000
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite
Grey
Black

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(For specific fitment type, integral or remote, please contact the Phi technical department )
