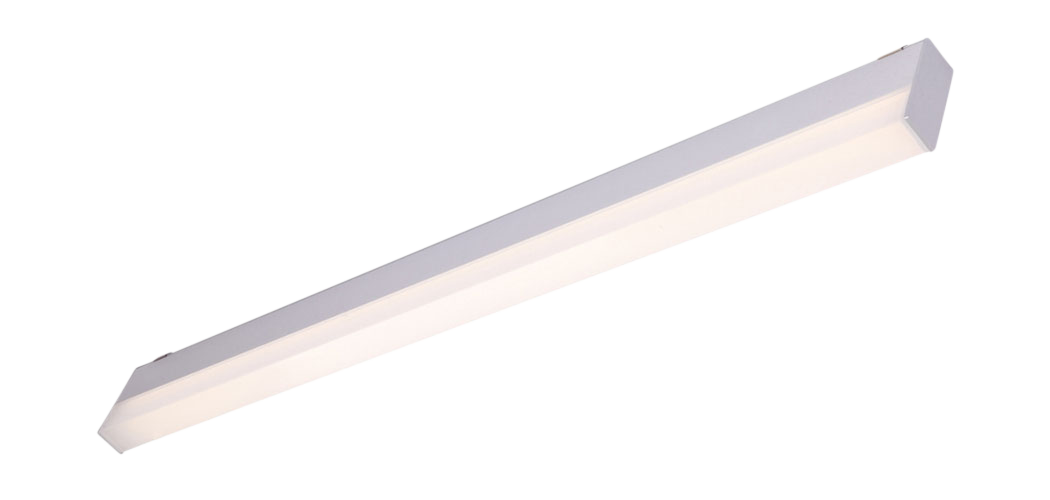

VEIN IV CEILING

SYSTEMS - SLOTS

Individual or continuous ribbons of light

Light Source
- LED
Light Type
- LED SELECTION
- SYSTEMS
Light Style
- SLOTS
Related Files
- Datasheet
- Photometric Data

Specification Details

Mounting

Ceiling
Wall mounting
Individual or continuous lines

Housing

Die extruded aluminium profile
Die cast aluminium end caps
IP20

Photometrics and Optics

Direct
Flat Opal PMMA optic (FO)
Drop Opal PMMA optic (DO)
Extra Deep Opal PMMA optic (XO)

Light Sources

LED - Static White ( 3000K & 4000K )
LED - Tunable White ( 2700K - 6000K )
CRI(Ra) ≥80

Installation

Surface mounting brackets

Electrical

AC 110 - 240V

Colours

Factory proprietary white
Factory proprietary grey

1. Range: VEIN 4 CEILING

2. Mounting options & Dimensional details

Ceiling Flat Optic

Ceiling Drop Optic

Ceiling Extra Deep Optic

3. Photometric Distribution

Direct Flat Optic

Direct Drop Optic

Direct Extra Deep Optic

4. Optics

Flat Optic

Drop Optic

EXtra Deep Optic

5. Lamp Options

		Lamp				Dimensions
Vers	Code	Wattage	CCT	Type	L	W	H
FO	18.830	18	3000	LED	1130	43	64
FO	18.840	18	4000	LED	1130	43	64
FO	27.830	27	3000	LED	1690	43	64
FO	27.840	27	4000	LED	1690	43	64
FO	36.830	36	3000	LED	1130	43	64
FO	36.840	36	4000	LED	1130	43	64
FO	54.830	54	3000	LED	1690	43	64
FO	54.840	54	4000	LED	1690	43	64
DO	18.830	18	3000	LED	1130	43	80
DO	18.840	18	4000	LED	1130	43	80
DO	27.830	27	3000	LED	1690	43	80
DO	27.840	27	4000	LED	1690	43	80
DO	36.830	36	3000	LED	1130	43	80
DO	36.840	36	4000	LED	1130	43	80
DO	54.830	54	3000	LED	1690	43	80
DO	54.840	54	4000	LED	1690	43	80
XO	18.830	18	3000	LED	1130	43	110
XO	18.840	18	4000	LED	1130	43	110
XO	27.830	27	3000	LED	1690	43	110
XO	27.840	27	4000	LED	1690	43	110
XO	36.830	36	3000	LED	1130	43	110
XO	36.840	36	4000	LED	1130	43	110
XO	54.830	54	3000	LED	1690	43	110
XO	54.840	54	4000	LED	1690	43	110

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

Grey

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(For specific fitment type, integral or remote, please contact the Phi technical department )
