ZEB

FEATURE - ACCENT

For highlighting and artistic notes

Specification Details

Mounting

  • Track mounting
  • 3 Circuit

Housing

  • Housing: Aluminium
  • IP20
  • Flexible extension arm

Photometrics and Optics

  • Direct
  • Facetted reflector
  • 12, 20, 30, 40 & 60 Degree beam

Light Sources

  • LED : COB
  • WATTAGES : 31w
  • CCT : 2700(K), 3000(K) & 4000(K)
  • CRI : >80 or >90

Installation

  • Track Adapter

Electrical

  • Integral HF Driver

Colours

  • White
  • Black
  • Silver Grey

1. Range: ZEB

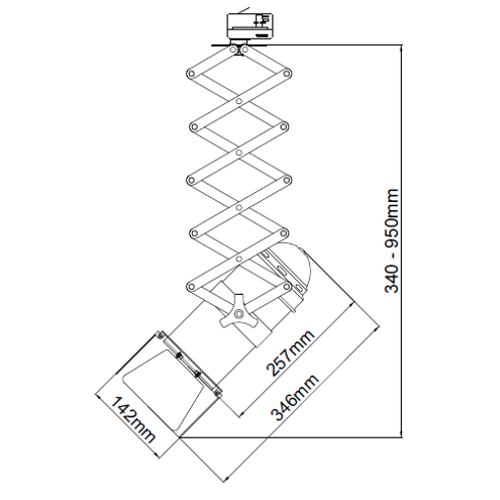

2. Mounting options & Dimensional details

3. Photometric Distribution

Direct 12 degree
Direct 20 degree
Direct 30 degree
Direct 40 degree
Direct 60 degree

4. Optics

5. Lamp Options

LampDimensionsExtension
VersCodeWattageCCT (K)D or L x WHH
31.830313000142346340-950
31.840314000142346340-950
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite
BLack
Silver Grey

8. Emergency options ( Integral & Remote)

Not Available
