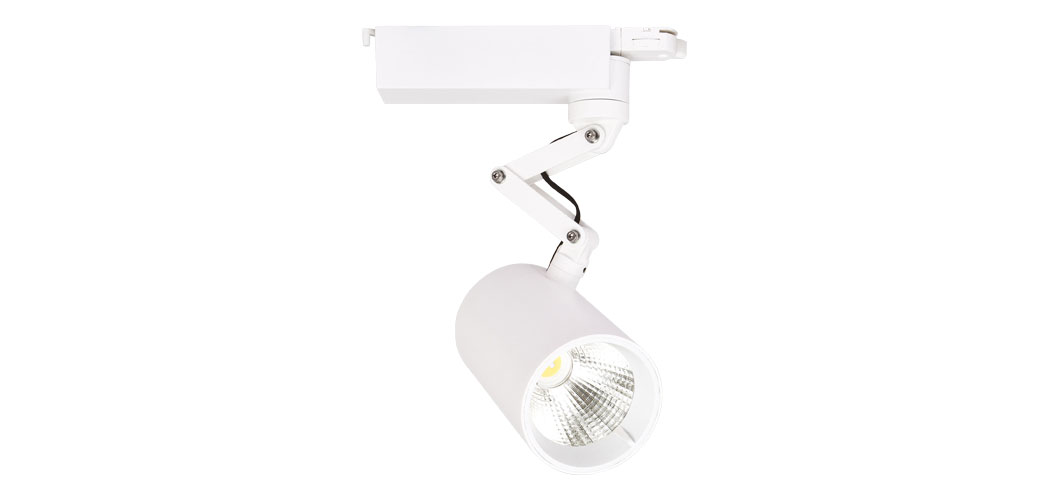

POWA

FEATURE - ACCENT

For highlighting and artistic notes

Specification Details

Mounting

  • Track mounting
  • 3 Circuit

Housing

  • Housing: Aluminium
  • IP20

Photometrics and Optics

  • Direct
  • Facetted reflector
  • 20, 24, 30, & 36 Degree beam

Light Sources

  • LED : COB
  • WATTAGES : 24w - 35W
  • CCT : 2700(K), 3000(K) & 4000(K)
  • CRI : >80 or >90

Installation

  • Track Adapter

Electrical

  • Integral HF Driver

Colours

  • --WH--ite
  • Black
  • Silver Grey

1. Range: POWA

2. Mounting options & Dimensional details

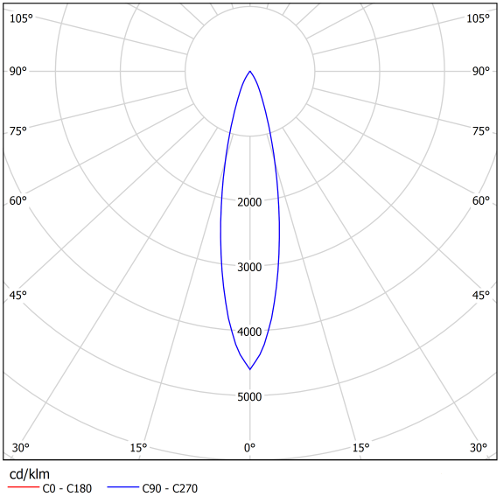

3. Photometric Distribution

Direct 20 degree
Direct 24 degree
Direct 30 degree
Direct 36 degree

4. Optics

5. Lamp Options

LampDimensions
VersCodeWattageCCT (K)D or L x WH
27.83027300075115
27.84027400075115
35.83035300085140
35.84035400085140
24.83024300075115
24.84024400075115
28.83028300085140
28.84028400085140
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite
BLack
Grey

8. Emergency options ( Integral & Remote)

Not Available

9. Options & Accessories

AGS Anti glare screen

VIS Visor

HCF Honeycomb filter

BND Barn doors

Additional Images

AGS
VIS
HCF
