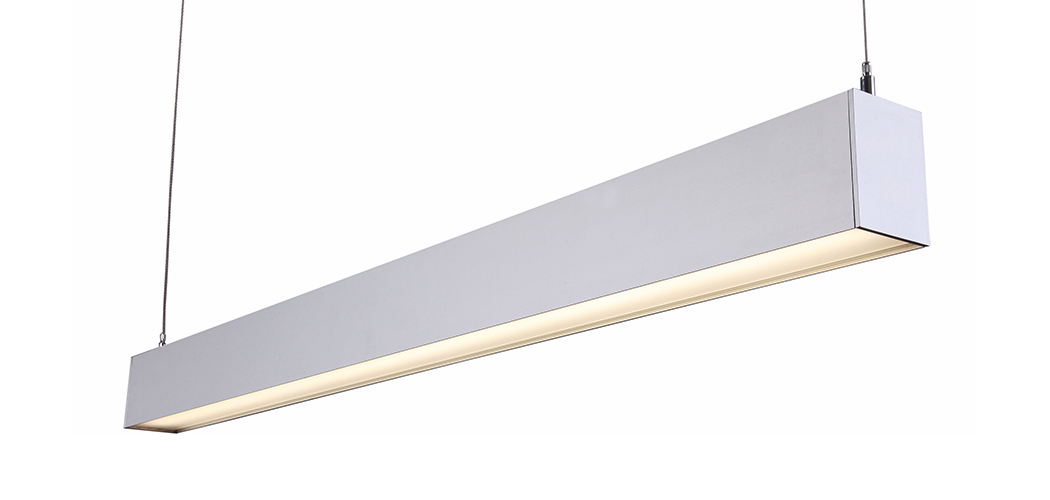

STRIA SUSPENDED

SYSTEMS - SLOTS

Individual or continuous ribbons of light

Light Source
- LED
Light Type
Light Style
- SLOTS
Related Files

Specification Details

Mounting

Suspended
Individual or continuous lines

Housing

Die extruded aluminium profile
Die cast aluminium end caps
System configurable
IP20

Photometrics and Optics

Direct
Trizonal (70:30)
Trizonal (50:50)
Flat Opal PMMA Optic (FO)
Dropped Opal PMMA Optic (DO)

Light Sources

LED - SMD
LED - Static White ( 3000K & 4000K )
LED - Tunable White ( 2700K - 6000K )
CRI ≤ 857

Installation

Coated, adjustable, stainless steel wire suspension

Electrical

AC 110-240V

Colours

Factory proprietary white
Factory proprietary silver grey
Black

1. Range: STRIA LED

2. Mounting options & Dimensional details

Suspended

3. Photometric Distribution

Direct

Tri-zonal

4. Optics

Opal

5. Lamp Options

				Lamp				Dimensions		CCT
Vers.	Vers.	Distribution	Code	Wattage	Type	Lumens (lm)	L	W	H	CCT (K)
D	FO	-	18.830	18	LED	1647	1130	68	90	3000
D	FO	-	18.840	18	LED	1647	1130	68	90	4000
D	FO	-	27.830	27	LED	2471	1690	68	90	3000
D	FO	-	27.840	27	LED	2471	1690	68	90	4000
D	FO	-	36.830	36	LED	3450	1130	68	90	3000
D	FO	-	36.840	36	LED	3450	1130	68	90	4000
D	FO	-	54.830	54	LED	5175	1690	68	90	3000
D	FO	-	54.840	54	LED	5175	1690	68	90	4000
D	DO	-	18.830	18	LED	1967	1130	68	100	3000
D	DO	-	18.840	18	LED	1967	1130	68	100	4000
D	DO	-	27.830	27	LED	2951	1690	68	100	3000
D	DO	-	27.840	27	LED	2951	1690	68	100	4000
D	DO	-	36.830	36	LED	3803	1130	68	100	3000
D	DO	-	36.840	36	LED	3803	1130	68	100	4000
D	DO	-	54.830	54	LED	5704	1690	68	100	3000
D	DO	-	54.840	54	LED	5704	1690	68	100	4000
T	FO	70:30	54.830	54	LED	5545	1130	68	90	3000
T	FO	70:30	54.840	54	LED	5545	1130	68	90	4000
T	FO	70:30	81.830	81	LED	8317	1690	68	90	3000
T	FO	70:30	81.840	81	LED	8317	1690	68	90	4000
T	DO	70:30	54.830	54	LED	TBC	1130	68	100	3000
T	DO	70:30	54.840	54	LED	TBC	1130	68	100	4000
T	DO	70:30	81.830	81	LED	TBC	1690	68	100	3000
T	DO	70:30	81.840	81	LED	TBC	1690	68	100	4000
T	FO	50:50	36.830	36	LED	3742	1130	68	90	3000
T	FO	50:50	36.840	36	LED	3742	1130	68	90	4000
T	FO	50:50	55.830	55	LED	5613	1690	68	90	3000
T	FO	50:50	55.840	55	LED	5613	1690	68	90	4000
T	FO	50:50	72.830	72	LED	7044	1130	68	90	3000
T	FO	50:50	72.840	72	LED	7044	1130	68	90	4000
T	FO	50:50	110.830	108	LED	10566	1690	68	90	3000
T	FO	50:50	110.840	108	LED	10566	1690	68	90	4000
T	DO	50:50	36.830	36	LED	4120	1130	68	100	3000
T	DO	50:50	36.840	36	LED	4120	1130	68	100	4000
T	DO	50:50	55.830	55	LED	6180	1690	68	100	3000
T	DO	50:50	55.840	55	LED	6180	1690	68	100	4000
T	DO	50:50	72.830	72	LED	7756	1130	68	100	3000
T	DO	50:50	72.840	72	LED	7756	1130	68	100	4000
T	DO	50:50	110.830	108	LED	11634	1690	68	100	3000
T	DO	50:50	110.840	108	LED	11634	1690	68	100	4000

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

Grey

Black

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(For specific fitment type, integral or remote, please contact the Phi technical department )
