You are here:

QUO IPC

FEATURE - DOWNLIGHT

For highlighting and artistic notes

Light Source
- LED
Light Type
- FEATURE
Light Style
- DOWNLIGHT
Related Files
- Datasheets
- Photometry

Specification Details

Mounting

Recessed

Housing

Housing: Aluminium
Trim: Die cast aluminium
Anti Tamper fixings
IP65

Photometrics and Optics

Direct only
24 Degree, 36 Degree, 38 Degree & 60 Degree beam angle (Dependant on version)
Reflector: Facetted anodised Aluminium
Optic : Tempered glass cover

Light Sources

LED : 10w - 35w dependant on version
CCT : 3000(K) & 4000(K)
CRI : >80

Installation

Ceiling fixing assembly

Electrical

230V AC at 50Hz
Remote DALI or HF driver with covered fast-fit connectors as standard.
Remote Constant Light Output (CLO) driver options.

Colours

Factory proprietary white

1. Range: QUO IPC

2. Mounting options & Dimensional details

Recessed

3. Photometric Distribution

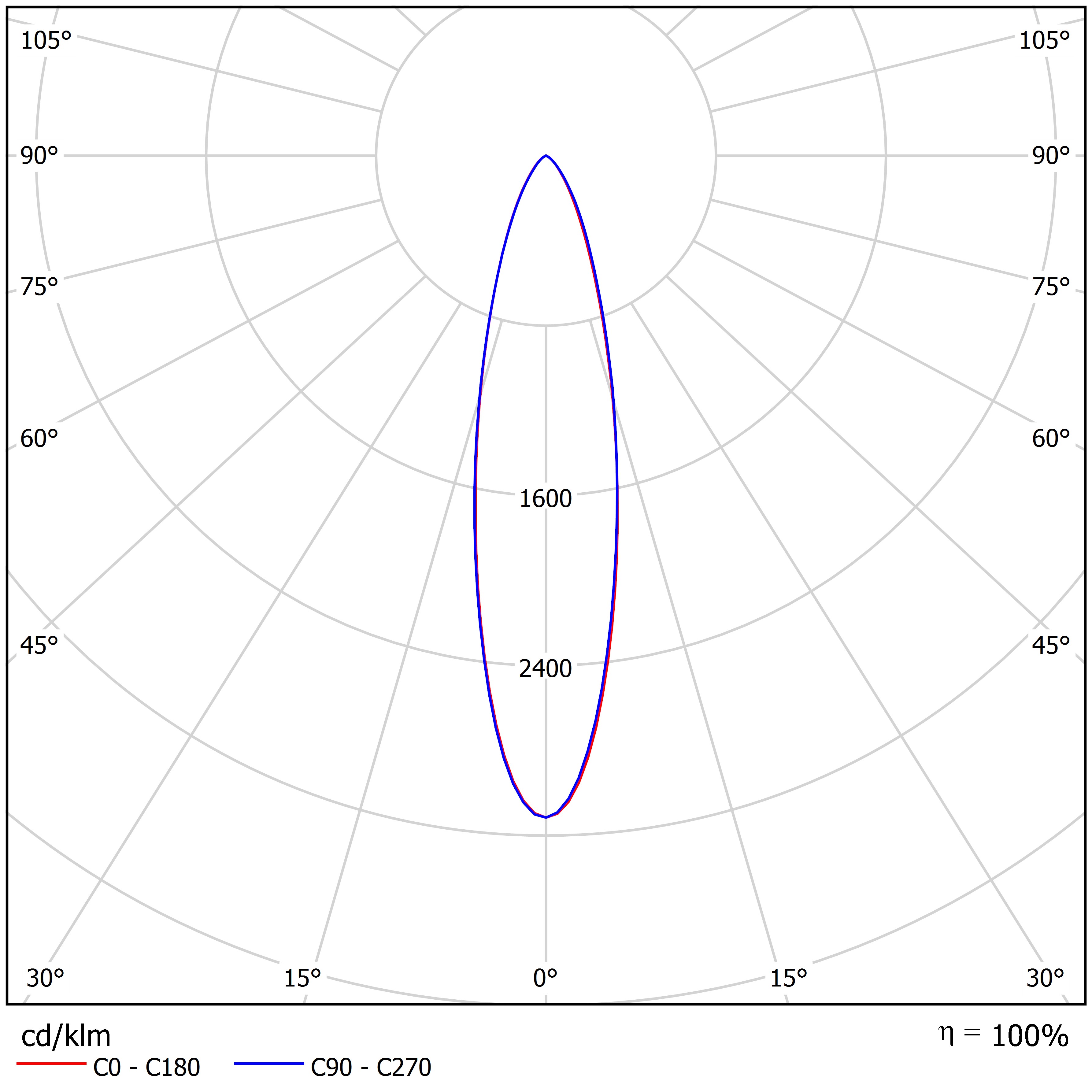

Direct 24° Degree

Direct 38° Degree

Direct 60° Degree

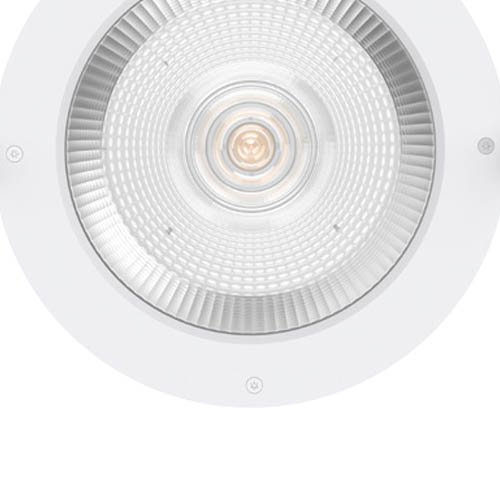

4. Optics

Faceted

5. Lamp Options

		Lamp			Dimensions	Cutout
Code	Code	Wattage	CCT (K)	D1	H	01
QIPC90	10.830	10	3000	110	51	90
QIPC90	10.840	10	4000	110	51	90
QIPC90	13.830	13	3000	110	51	90
QIPC90	13.840	13	4000	110	51	90
QIPC125	18.830	18	3000	150	64	125
QIPC125	18.840	18	4000	150	64	125
QIPC125	25.830	25	3000	150	64	125
QIPC125	25.840	25	4000	150	64	125
QIPC150	18.830	18	3000	172	69	150
QIPC150	18.840	18	4000	172	69	150
QIPC150	25.830	25	3000	172	69	150
QIPC150	25.840	25	4000	172	69	150
QIPC150	35.830	35	3000	172	69	150
QIPC150	35.840	35	4000	172	69	150
QIPC200	18.830	18	3000	235	81	200
QIPC200	18.840	18	4000	235	81	200
QIPC200	25.830	25	3000	235	81	200
QIPC200	25.840	25	4000	235	81	200
QIPC200	35.830	35	3000	235	81	200
QIPC200	35.840	35	4000	235	81	200

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - Remote 3Hr Maintained Emergency conversion.

ST3 - Remote Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion
