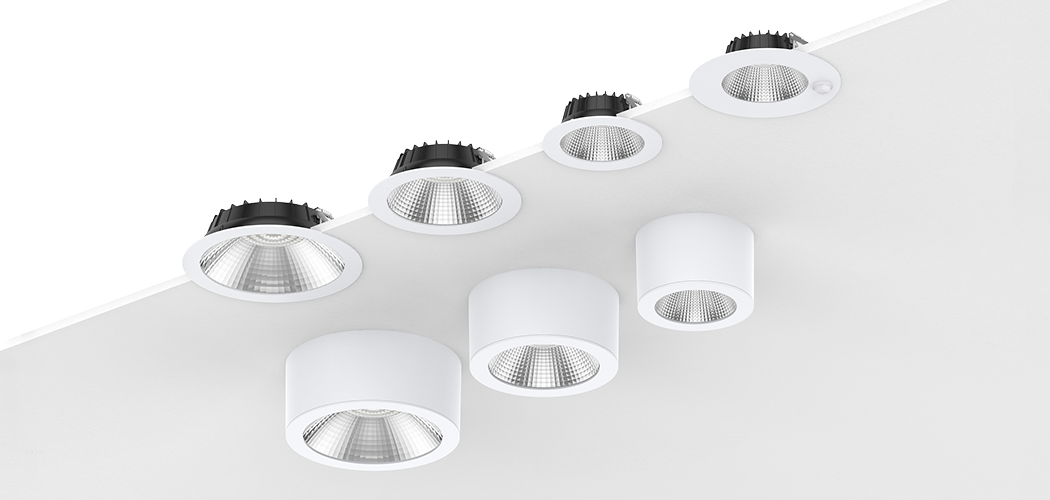

QUO140

FEATURE - DOWNLIGHT

For highlighting and artistic notes

Specification Details

Mounting

  • Recessed

Housing

  • Housing: Sheet steel
  • Trim: Die cast aluminium
  • IP54 (from below ceiling)

Photometrics and Optics

  • Direct 60 degree
  • Reflector: Faceted Aluminium
  • Lens Optic

Light Sources

  • LED : 11w UGR ≤ 19
  • LED : 16w UGR ≤ 22
  • CCT : 3000(K) & 4000(K)
  • CRI : >80

Installation

  • Ceiling fixing assembly

Electrical

  • Remote DALI or HF driver with covered fast-fit connectors as standard.
  • Remote Constant Light Output (CLO) driver options.

Colours

  • Factory proprietary white (RAL9016)

1. Range: QUO140

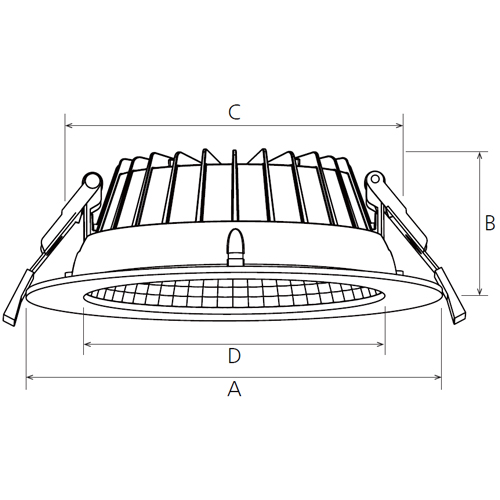

2. Mounting options & Dimensional details

Recessed

3. Photometric Distribution

Direct

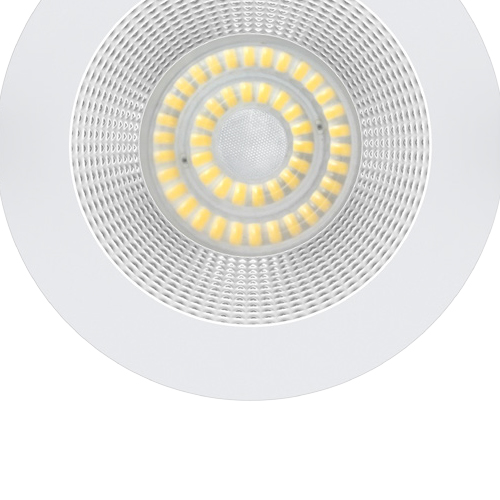

4. Optics

Faceted

5. Lamp Options

LampDimensionsCutout
CodeWattageCCT (K)A (Ø)BC (Ø)UGR
11.83011300017055120≤ 19
11.84011400017055120≤ 19
16.83016300017055120≤ 22
16.84016400017055120≤ 22
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - Remote 3Hr Maintained Emergency conversion.

AD3 - Remote Addressable 3Hr Maintained Emergency conversion.
