ECHOIC 6

RECESSED - MODULAR

Characterised by advanced technical features

Specification Details

Mounting

  • Recessed Lay-in Grid (R1/R3)
  • Recessed MF Board (R2)
  • Other Systems on request

Housing

  • Sheet steel fabricated

Photometrics and Optics

  • Direct
  • Dual Component Diamond Micro-Prismatic & Opal PMMA optic
  • UGR <19

Light Sources

  • LED - Static White ( 3000K & 4000K )
  • LED - Tunable White ( 2700K - 6000K )
  • CRI >80
  • Lifetime 50,000hrs (L70/B50)

Installation

  • Internally adjusted ceiling brackets

Electrical

  • Solid copper internal wiring to 3 or 5 pole terminal block
  • Fast-fit internal connector as standard
  • Flex & Wago or Wieland connector options, available on request.

Colours

  • Factory proprietary white
  • Other colours available on request.

1. Range: ECHOIC 6

2. Mounting options & Dimensional details

R1 Recessed

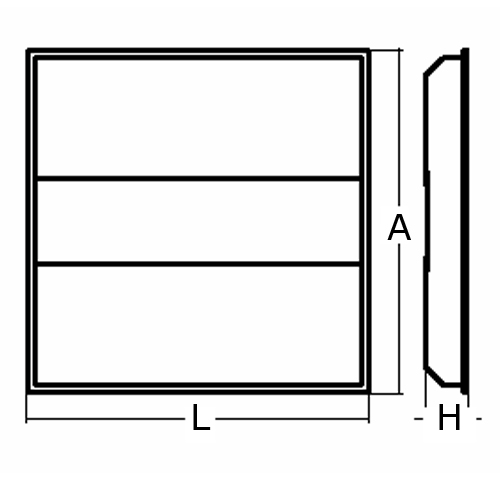

R2 Recessed
R3 Recessed

3. Photometric Distribution

Direct

4. Optics

DMP

5. Lamp Options

LampDimensionsCCTWeight
VersCodeWattageTypeLumen Output (lm)LAHKKg
R129.83029LED310059559510230005.2
R129.84029LED310059559510240005.2
R140.83040LED370059559510230005.2
R140.84040LED370059559510240005.2
R140.8T40LED41005955951023000-60005.3
R229.83029LED310061561510230005.2
R229.84029LED310061561510240005.2
R240.83040LED370061561510230005.2
R240.84040LED370061561510240005.2
R240.8T40LED41006156151023000-60005.3
R329.83029LED3100119529510230005.2
R329.84029LED3100119529510240005.2
R340.83040LED3700119529510230005.2
R340.84040LED3700119529510240005.2
R340.8T40LED410011952951023000-60005.3
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

TW Tunable White System ( Only compatible with 52w options)

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(For specific fitment type, integral or remote, please contact the Phi technical department )
