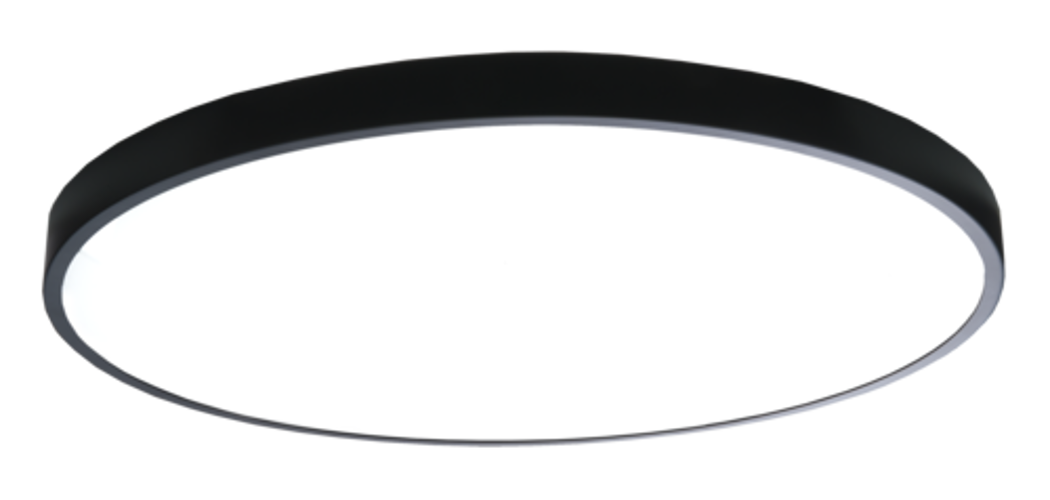

WHO LOW

MOST POPULAR - ARCHITECTURAL

Fascinating and creative architectural elements

Light Source
- LED
Light Type
- LED SELECTION
- MOST POPULAR
Light Style
- ARCHITECTURAL
Related Files
- Data Sheets Sept 2018
- Photometric Data (On Request)

Specification Details

Mounting

Wire suspended
Ceiling mounted

Housing

Steel & Aluminium fabrication
IP20

Photometrics and Optics

Direct
Diffusion optimised opal PMMA optic
Microprismatic On request

Light Sources

LED - SMD
CCT : 3000K or 4000K
CRI ≥ 80

Installation

Coated, adjustable, stainless steel wire suspension
Surface fixing assembly

Electrical

230V
50Hz

Colours

Factory proprietary grey
Factory proprietary white
Black
Other RAL colours available on request

1. Range: WHO LOW

2. Mounting options & Dimensional details

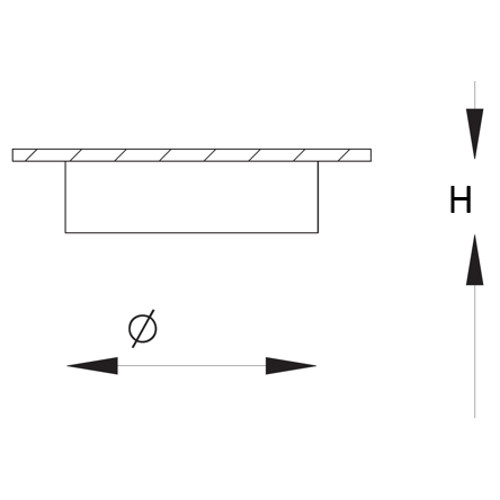

Ceiling

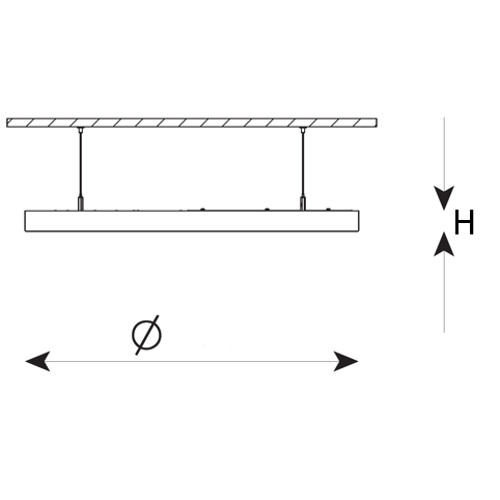

Suspended

3. Photometric Distribution

Direct

4. Optics

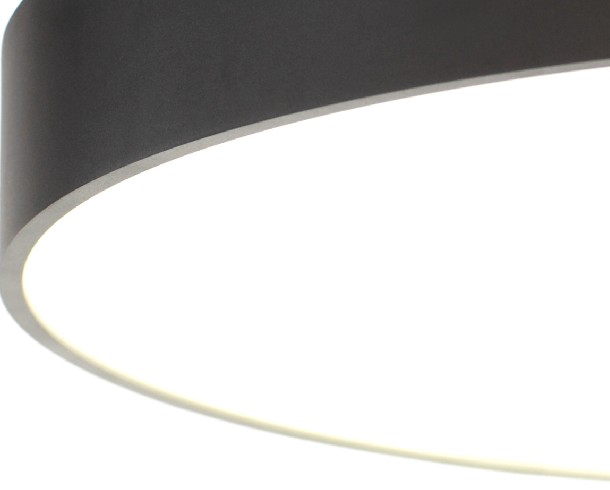

Opal

5. Lamp Options

					Dimensions
Vers	Vers	Code	Wattage(W)	CCT(K)	Ø (mm)	H
C	D	21.830	21	3000	300	75
C	D	21.840	21	4000	300	75
C	D	34.830	34	3000	425	75
C	D	34.840	34	4000	425	75
C	D	40.830	40	3000	500	75
C	D	40.840	40	4000	500	75
S	D	40.830	40	3000	500	50
S	D	40.840	40	4000	500	50
S	D	60.830	60	3000	800	50
S	D	60.840	60	4000	800	50

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

Grey

WHite

Black

8. Emergency options ( Integral & Remote)

EM3 -Confirmed on Request

(For specific fitment type, integral or remote, please contact the technical department. )
