STUX

PENDANT - DOWNLIGHT

For highlighting and artistic notes

Light Source
- LED
Light Type
- CEILING
- PENDANT
Light Style
- DOWNLIGHT
Related Files
- Data Sheets (On Request)
- Photometry (On Request)

Specification Details

Mounting

Surface
Suspended

Housing

Housing: Die cast aluminium
IP40

Photometrics and Optics

Direct
Facetted Reflector
12, 20, 24, 26, 30, 40, 48 & 60 Degree Beam
Dependant on size option

Light Sources

LED : COB
WATTAGES : 7w - 35w
CCT : 2700(k), 3000(K) & 4000(K)
CRI : >80 & >90

Installation

Ceiling fixing assembly

Electrical

Integrated driver.

Colours

--WH--ite
Black
Silver Grey

1. Range: STUX

2. Mounting options & Dimensional details

3. Photometric Distribution

Direct 12 degree

Direct 20 degree

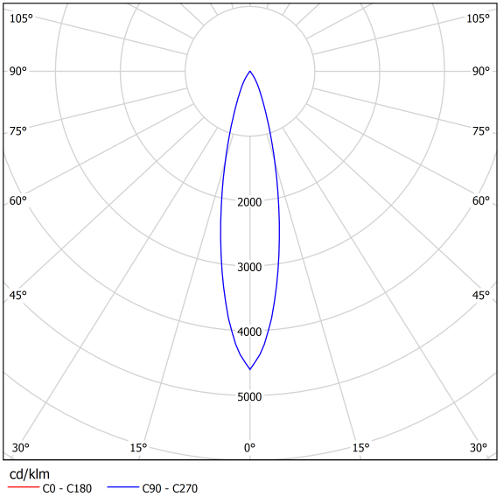

Direct 24 degree

Direct 26 degree

Direct 30 degree

Direct 40 degree

Direct 48 degree

Direct 60 degree

4. Optics

5. Lamp Options

			Lamp		Beam Angles		Dimensions
Vers	Vers	Code	Wattage	CCT (K)	Deg	D	H
C	80	10.830	10	3000	15/24/36	80	130
C	80	10.840	10	4000	15/24/36	80	130
S	80	10.830	10	3000	15/24/36	80	130
S	80	10.830	10	3000	15/24/36	80	130
C	80	18.830	18	3000	15/24/36	80	130
C	80	18.840	18	4000	15/24/36	80	130
S	80	18.830	18	3000	15/24/36	80	130
S	80	18.840	18	4000	15/24/36	80	130
C	112	25.830	25	3000	10/24/36	112.5	160
C	112	25.840	25	4000	10/24/36	112.5	160
S	112	25.830	25	3000	10/24/36	112.5	160
S	112	25.840	25	4000	10/24/36	112.5	160
C	90	10.830	10	3000	60	90	100
C	90	10.830	10	4000	60	90	100
C	90	15.830	15	3000	60	90	100
C	90	15.840	15	4000	60	90	100
C	120	25.830	25	3000	24/45/60	120	110
C	120	25.840	25	4000	24/45/60	120	110
C	160	35.830	35	3000	36/60	160	120
C	160	35.840	35	4000	36/60	160	120

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

BLack

Silver Grey

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(Fitment type, remote)

9. Options & Accessories

HCF Honeycomb filter
