SCULPT J

FEATURE - DOWNLIGHT

For highlighting and artistic notes

Light Source
- LED
Light Type
- FEATURE
Light Style
- DOWNLIGHT
Related Files
- Data Sheets
- Photometry (On Request)

Specification Details

Mounting

Recessed Round
Recessed Square

Housing

Housing: Die cast aluminium
Trim: Moulded polycarbonate
IP54

Photometrics and Optics

Direct
90 Degree Beam
Anti-glare lens grille UGR<19

Light Sources

LED : COB
WATTAGES : 10w - 25w
CCT : 3000(K) & 4000(K)
CRI : >80

Installation

Ceiling fixing assembly

Electrical

Remote driver with covered fast-fit connectors as standard.

Colours

Factory proprietary white

1. Range: SCULPT J

2. Mounting options & Dimensional details

Recessed Round

Recessed Square

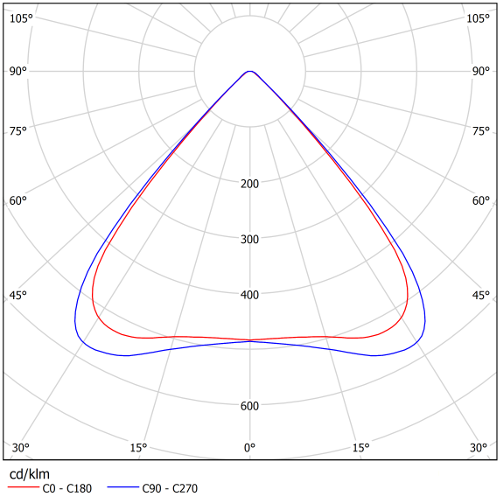

3. Photometric Distribution

Direct 90 Degree

4. Optics

Lens

5. Lamp Options

		Lamp			Dimensions	Cutout
Vers	Code	Wattage	CCT (K)	D or L x W	H	D1
RR	10.830	10	3000	110	40	90
RR	10.840	10	4000	110	40	90
RR	18.830	18	3000	190	40	160
RR	18.840	18	4000	190	40	160
RR	25.830	25	3000	228	40	200
RR	25.840	25	4000	228	40	200
RS	10.830	10	3000	110 x 110	44	90
RS	10.840	10	4000	110 x 110	44	90
RS	18.830	18	3000	190 x 190	44	160
RS	18.840	18	4000	190 x 190	44	160
RS	25.830	25	3000	228 x 228	44	200
RS	25.840	25	4000	228 x 228	44	200

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(Fitment type, remote)
