SCULPT F

FEATURE - DOWNLIGHT

For highlighting and artistic notes

Light Source
- LED
Light Type
- FEATURE
Light Style
- DOWNLIGHT
Related Files
- Data Sheets
- Photometry (On Request)

Specification Details

Mounting

Recessed Round
Recessed Square

Housing

Housing & Trim: Die cast aluminium
IP54

Photometrics and Optics

Adjustable
60 & 36 Degree Beam as standard
24 Degree Beam version upon request
Facetted Reflector

Light Sources

LED : COB
WATTAGES : 5w - 8w
CCT : 3000(K) & 4000(K)
CRI : >80

Installation

Ceiling fixing assembly

Electrical

Remote driver with covered fast-fit connectors as standard.

Colours

Factory proprietary white

1. Range: SCULPT F

2. Mounting options & Dimensional details

Recessed Round

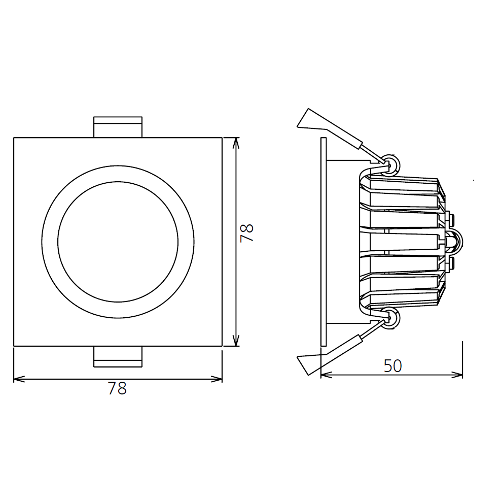

Recessed Square

3. Photometric Distribution

Direct 60 Degree

Direct 36 Degree

Direct 24Degree

4. Optics

Facetted

5. Lamp Options

			Lamp			Dimensions	Cutout
Vers	Vers	Code	Wattage	CCT (K)	D or L x W	H	D1
70	RR	5.830	5	3000	80	55	70
70	RR	5.840	5	4000	80	55	70
70	RR	8.830	8	3000	80	55	70
70	RR	8.840	8	4000	80	55	70
70	RS	5.830	5	3000	78 x 78	55	70
70	RS	5.840	5	4000	78 x 78	55	70
70	RS	8.830	8	3000	78 x 78	55	70
70	RS	8.840	8	4000	78 x 78	55	70

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(Fitment type, remote)
