SCULPT E

FEATURE - DOWNLIGHT

For highlighting and artistic notes

Specification Details

Mounting

  • Recessed Round

Housing

  • Housing & Trim: Die cast aluminium
  • IP40

Photometrics and Optics

  • Adjustable
  • 60 & 36 Degree Beam as standard
  • 24 & 15 Degree Beam versions upon request
  • Facetted Reflector
  • Optional coloured inner ring

Light Sources

  • LED : COB
  • WATTAGES : 5w - 10w
  • CCT : 3000(K) & 4000(K)
  • CRI : >80

Installation

  • Ceiling fixing assembly

Electrical

  • Remote driver with covered fast-fit connectors as standard.

Colours

  • Factory proprietary white

1. Range: SCULPT E

2. Mounting options & Dimensional details

Recessed Round

3. Photometric Distribution

Direct 60 Degree
Direct 36 Degree

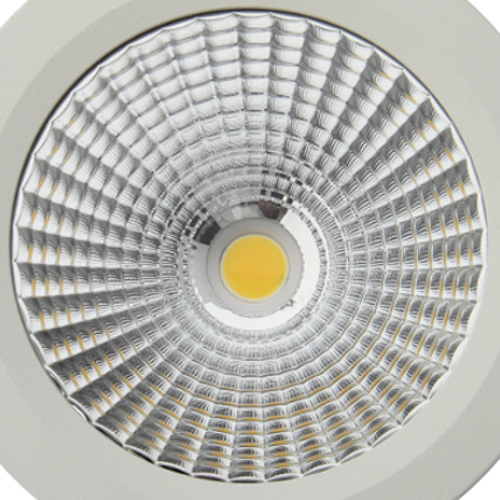

4. Optics

Facetted

5. Lamp Options

LampDimensionsCutout
VersCodeWattageCCT (K)DHD1
8510.8301030001005585
8510.8401040001005585
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(Fitment type, remote)

9. Options & Accessories

BL Black Inner ring (standard)

S Silver Inner ring

B Blue Inner ring

R Red Inner ring
