SCULPT D

FEATURE - DOWNLIGHT

For highlighting and artistic notes

Light Source
- LED
Light Type
- FEATURE
Light Style
- DOWNLIGHT
Related Files
- Data Sheets
- Photometry (On Request)

Specification Details

Mounting

Recessed Round

Housing

Housing & Trim: Die cast aluminium
IP54

Photometrics and Optics

Adjustable
60 Degree Beam as standard
36, 24 & 15 Degree Beam versions upon request
Facetted Reflector

Light Sources

LED : COB
WATTAGES : 5w - 10w
CCT : 3000(K) & 4000(K)
CRI : >80

Installation

Ceiling fixing assembly

Electrical

Remote driver with covered fast-fit connectors as standard.

Colours

Factory proprietary white

1. Range: SCULPT D

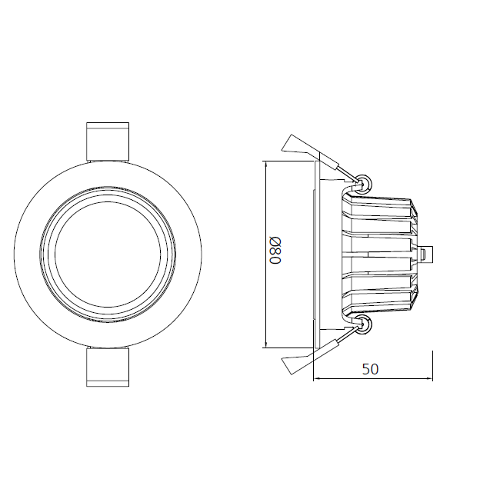

2. Mounting options & Dimensional details

Recessed Round

3. Photometric Distribution

Direct 36 Degree

Direct 60 Degree

4. Optics

Facetted

5. Lamp Options

		Lamp			Dimensions	Cutout
Vers	Code	Wattage	CCT (K)	D	H	D1
70	5.830	5	3000	80	70	70
70	5.840	5	4000	80	70	70
70	8.830	8	3000	80	70	70
70	8.840	8	4000	80	70	70
85	10.830	10	3000	95	85	85
85	10.840	10	4000	95	85	85

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(Fitment type, remote)
