QUO104

FEATURE - DOWNLIGHT

For highlighting and artistic notes

Light Source
- LED
Light Type
- FEATURE
Light Style
- DOWNLIGHT
Related Files
- Photometry Sept 2019
- Data Sheets Sept 2019

Specification Details

Mounting

Recessed

Housing

Housing: Sheet steel
Trim: Die cast aluminium
IP20

Photometrics and Optics

Direct only
Reflector: Polished/Matt/White anodised Aluminium
Optic diffuser: Microprismatic PMMA
IP54 cover available
Optic enclosure IP40 as standard

Light Sources

LED : 8w - 11w
CCT : 3000(K) & 4000(K)
CRI : >80

Installation

Ceiling fixing assembly

Electrical

Remote driver with covered fast-fit connectors as standard.

Colours

Factory proprietary white

1. Range: QUO104

2. Mounting options & Dimensional details

Recessed

3. Photometric Distribution

Direct Polished

Direct Matt

Direct White

4. Optics

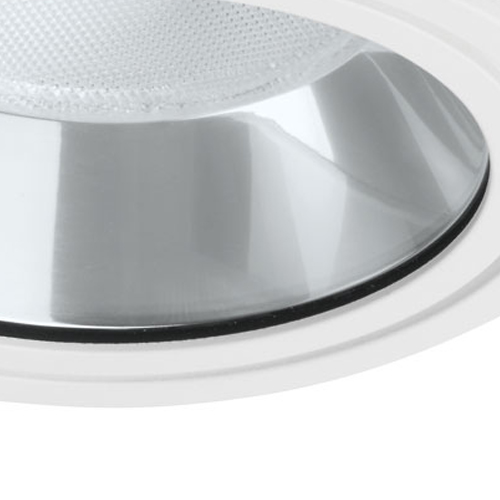

Polished

Matt

5. Lamp Options

	Lamp		Lumens		Dimensions	Cutout	Weight
Code	Wattage	CCT (K)	Dependant on version	D1	H	01	KG
8.830	8	3000	450-850	116	76	104	0.8
8.840	8	4000	500-900	116	76	104	0.8
11.830	11	3000	650-1200	116	76	104	0.8
11.840	11	4000	700-1250	116	76	104	0.8

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - Remote 3Hr Maintained Emergency conversion.

AD3 - Remote Addressable 3Hr Maintained Emergency conversion.

9. Options & Accessories

54TR IP54 Transparent optional cover

54OP IP54 Opal optional cover (only with polished reflector)
