PLUS+

SUSPENDED - CONTEMPORARY

Clean, stylish and contemporary flexibility

Specification Details

Mounting

  • Suspended
  • Individual

Housing

  • Formed Sheet Steel
  • IP40

Photometrics and Optics

  • Direct
  • Direct / Indirect
  • Microprismatic PMMA Diffusing Optic

Light Sources

  • LED - SMD
  • LED - Static White ( 3000K & 4000K )
  • LED - Tunable White ( 2700K - 6000K )
  • Source Efficacy 105lm/w
  • CRI ≤ 85

Installation

  • 4 Point coated, adjustable, stainless steel wire suspension as standard.
  • 2 Point inverted " Y ", coated, adjustable, stainless steel wire suspensions optional.

Electrical

  • AC 220-240V
  • Terminal block with strain relief ( Max. 2,5mm2 csa )
  • Solid copper internal wiring to 3 or 5 pole terminal block.

Colours

  • White - RAL 9003
  • Black - RAL 9005
  • Silver Grey - RAL 9006

1. Range: PLUS+

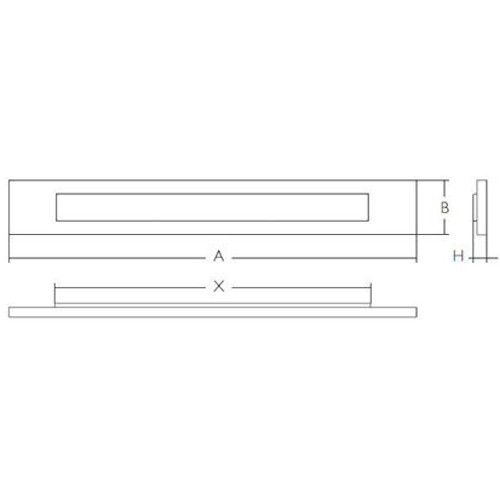

2. Mounting options & Dimensional details

Suspended

3. Photometric Distribution

Direct
Trizonal

4. Optics

Opal

5. Lamp Options

LampDimensionsCCTWeight
Dist.CodeWattageLumens (lm)LAHXKCRIKg
D41.83041420014902005011603000805.2
D41.84041420014902005011604000805.2
T48.83048504014902005011603000805.2
T48.84048504014902005011604000805.2
D41.8T41410014902005011603K - 6K805.2
T41.8T41410014902005011603K - 6K805.2
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

TW Tunable White System

7. Colour

WHite
Black
Grey

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(For specific fitment type, integral or remote, please contact the Phi technical department)
