PIX

FEATURE - ACCENT

For highlighting and artistic notes

Specification Details

Mounting

  • Track mounting
  • 3 Circuit

Housing

  • Housing: Aluminium
  • IP20

Photometrics and Optics

  • Direct
  • Facetted reflector
  • 12, 20, 30, 40 & 60 Degree beam

Light Sources

  • LED : COB
  • WATTAGES : 14w - 48W
  • CCT : 2700(K), 3000(K) & 4000(K)
  • CRI : >80 or >90

Installation

  • Track Adapter

Electrical

  • Integral HF Driver

Colours

  • White
  • Black
  • Silver Grey

1. Range: PIX

2. Mounting options & Dimensional details

3. Photometric Distribution

Direct 12 degree
Direct 20 degree
Direct 30 degree

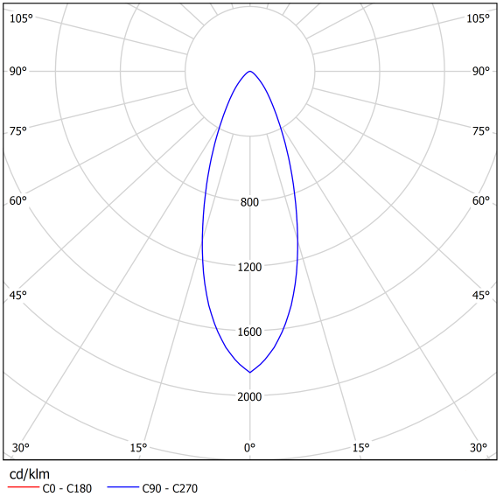

Direct 36 degree
Direct 40 degree
Direct 50 degree

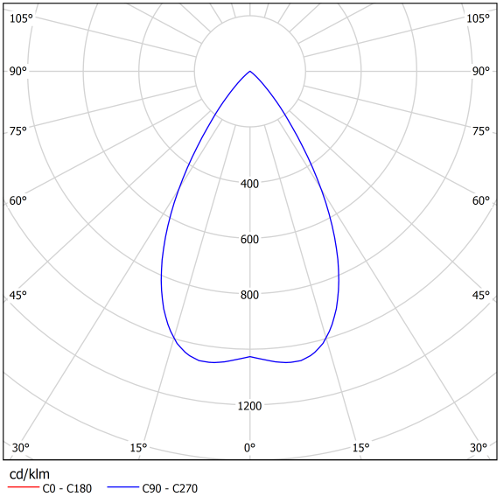

Direct 60 degree

4. Optics

5. Lamp Options

LampDimensions
VersCodeWattageCCT (K)D or L x WH
14.83014300070141
14.84014400070141
31.830313000104163
31.840314000104163
40.830403000104163
40.840404000104163
35.830353000120197
35.840354000120197
48.830483000120197
48.840484000120197
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite
BLack
Grey

8. Emergency options ( Integral & Remote)

Not Available

9. Options & Accessories

AGS Anti glare screen

VIS Visor

HCF Honeycomb filter

BND Barn doors

Additional Images

AGS
VIS
HCF
