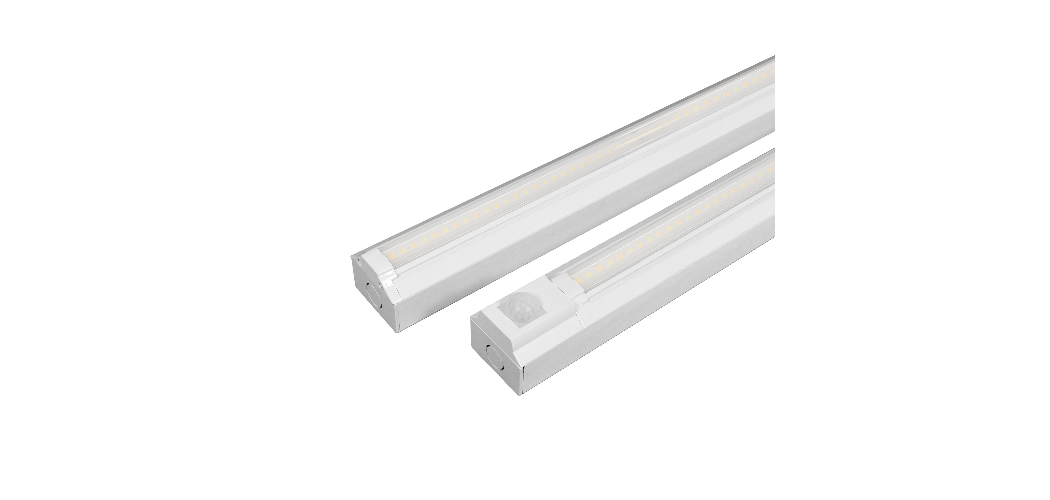

PAX

LED SELECTION - UTILITY

Safety and security for challenging environments

Light Source
- LED
Light Type
- INDUSTRIAL
- LED SELECTION
Light Style
- SURFACE
- UTILITY
Related Files

Specification Details

Mounting

Ceiling
Wall mounting
Suspended

Housing

Aluminium profile
PC end caps
IP20

Photometrics and Optics

Direct
Wide Opal optic (DW)
Narrow Frosted optic (DN)

Light Sources

LED - Static White ( 3000K & 4000K )
CRI(Ra) ≥80

Installation

Surface mounting
Suspended mounting

Electrical

AC 110 - 240V

Colours

Factory proprietary white

1. Range: PAX

2. Mounting options & Dimensional details

Wide

Narrow

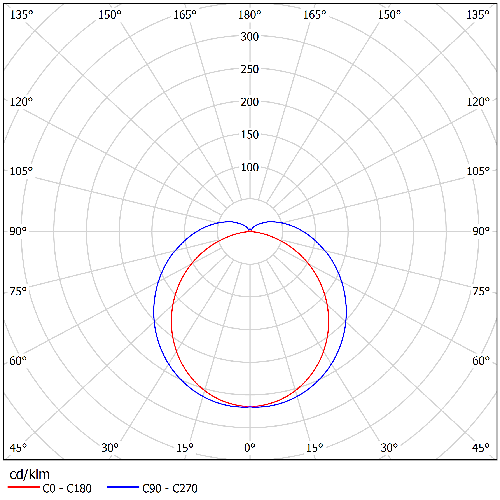

3. Photometric Distribution

Wide

Narrow

4. Optics

Wide

Narrow

5. Lamp Options

		Lamp			Dimensions
Vers	Code	Wattage	CCT	L	W	H
DW	10.830	10	3000	600	55	58
DW	10.840	10	4000	600	55	58
DW	17.830	17	3000	1200	55	58
DW	17.840	17	4000	1200	55	58
DW	32.830	32	3000	1200	55	58
DW	32.840	32	4000	1200	55	58
DW	28.830	28	3000	1500	55	58
DW	28.840	28	4000	1500	55	58
DW	56.830	56	3000	1500	55	58
DW	56.840	56	4000	1500	55	58
DW	33.830	33	3000	1800	55	58
DW	33.840	33	4000	1800	55	58
DW	62.830	62	3000	1800	55	58
DW	62.840	62	4000	1800	55	58
DN	17.830	17	3000	1205	55	50
DN	17.840	17	4000	1205	55	50
DN	32.830	32	3000	1205	55	50
DN	32.840	32	4000	1205	55	50
DN	28.830	28	3000	1505	55	50
DN	28.840	28	4000	1505	55	50
DN	56.830	56	3000	1505	55	50
DN	56.840	56	4000	1505	55	50
DN	33.830	33	3000	1805	55	50
DN	33.840	33	4000	1805	55	50
DN	62.830	62	3000	1805	55	50
DN	62.840	62	4000	1805	55	50
DN	72.830	72	3000	1805	55	50
DN	72.840	72	4000	1805	55	50
DN / DW	PIR	ALL	ALL	ADD 55MM

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(For specific fitment type, integral or remote, please contact the Phi technical department )

9. Options & Accessories

PIR Integral to body
