NXT

FEATURE - ACCENT

For highlighting and artistic notes

Specification Details

Mounting

  • Surface
  • Suspended

Housing

  • Housing: Aluminium
  • IP40

Photometrics and Optics

  • Direct
  • Facetted reflector
  • 12, 20, 30, 40 & 60 Degree beam

Light Sources

  • LED : COB
  • WATTAGES : 35w Twin or Quad
  • CCT : 2700(K), 3000(K) & 4000(K)
  • CRI : >80 or >90

Installation

  • Surface mount kit
  • Wire suspension

Electrical

  • Integral HF Driver

Colours

  • White
  • Black
  • Silver Grey

1. Range: NXT

2. Mounting options & Dimensional details

Wall
Twin
Quad

3. Photometric Distribution

Direct 12 degree
Direct 20 degree

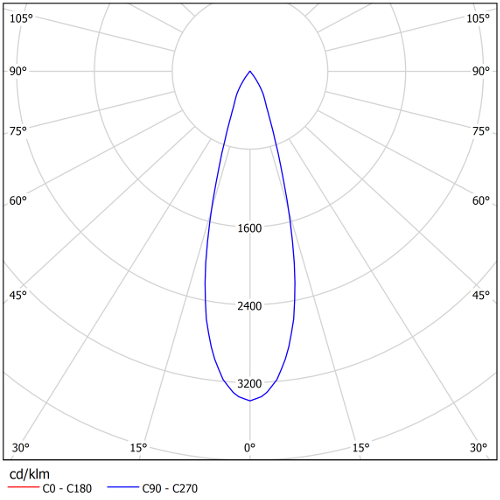

Direct 30 degree
Direct 40 degree
Direct 60 degree

4. Optics

5. Lamp Options

LampDimensionsCutout
VersCodeWattageCCT (K)D or L x WHHead Diameter
Wall35.830353000177 X 139340115
Wall35.840354000177 X 139340115
Twin35.8302 X 353000440 X 150140115
Twin35.8402 X 354000440 X 150140115
Quad35.8304 X 353000440 X 440140115
Quad35.8404 X 354000440 X 440140115
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite
BLack
Grey

8. Emergency options ( Integral & Remote)

Not Available
