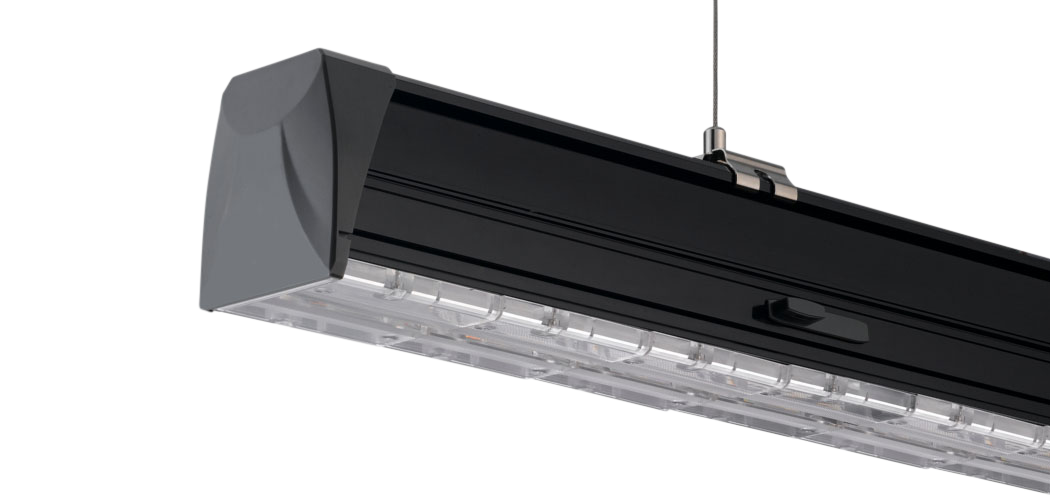

UBIQ

MOST POPULAR - ARCHITECTURAL

Fascinating and creative architectural elements

Specification Details

Mounting

  • Suspended
  • Ceiling Mount
  • Wire Suspension (1)
  • Chain Suspension (2)
  • Rod Suspension (3)
  • Surface Mount Hole (4)
  • Surface Mount Clip (5)

Housing

  • Die extruded aluminium profile
  • Die cast aluminium end caps
  • IP20

Photometrics and Optics

  • Direct
  • Very Narrow (V)
  • Narrow (N)
  • Wide (W)
  • Asymmetric - Left (AL) - Right (AR)
  • Double Asymmetric (D)

Light Sources

  • LED: SMD
  • CCT: 3000K or 4000K
  • CRI: >80

Installation

  • Coated, adjustable, stainless steel wire suspension
  • Chain suspension
  • Rod suspension

Electrical

  • AC 110-240V

Colours

  • Factory proprietary white
  • Factory proprietary silver grey
  • Black

1. Range: UBIQ

2. Mounting options & Dimensional details

S,C, 1,2,3

3. Photometric Distribution

Broad
Very Narrow
Narrow
Wide
Asymmetric L & R
Double Asymmetric

4. Optics

5. Lamp Options

LEDNominalDimensionsCCT
CodeWattageLumens (lm)LWHCCT (K)
16.830162350-241660073793000
16.840162350-241560073794000
26.830263780-389060073793000
26.840263780-389060073794000
32.830324690-491060073793000
32.840324690-491060073794000
40.830405960-6165150073793000
40.840405960-6165150073794000
65.830659360-9745150073793000
65.840659360-9745150073794000
80.8308011550-11745150073793000
80.8408011550-11745150073794000
All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite
Grey
Black

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

(For specific fitment type, integral or remote, please contact the Phi technical department )

9. Options & Accessories

Wire Suspension (1)

Chain Suspension (2)

Rod Suspension (3)

Surface Mount Hole (4)

Surface Mount Clip (5)
