SCULPT A

FEATURE - DOWNLIGHT

For highlighting and artistic notes

Light Source
- LED
Light Type
- FEATURE
Light Style
- DOWNLIGHT
Related Files
- Data Sheets
- Photometry

Specification Details

Mounting

Recessed Round
Recessed Square

Housing

Housing & Trim: Die cast aluminium
IP65

Photometrics and Optics

Direct
36 & 60 Degree Beam
Facetted Reflector

Light Sources

LED : COB
WATTAGES : 6w - 13w
CCT : 3000(K) & 4000(K)
CRI : >80

Installation

Ceiling fixing assembly

Electrical

Remote driver with covered fast-fit connectors as standard.

Colours

Factory proprietary white

1. Range: SCULPT A

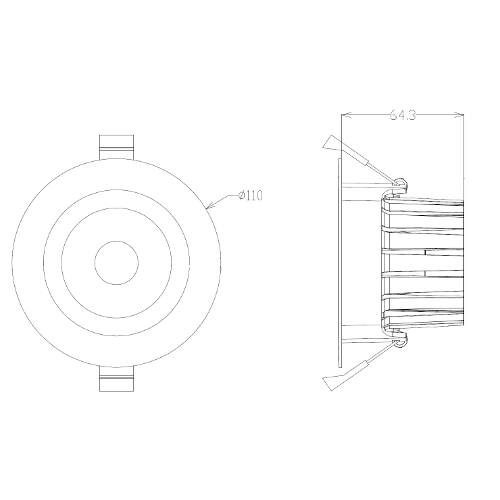

2. Mounting options & Dimensional details

Recessed Round

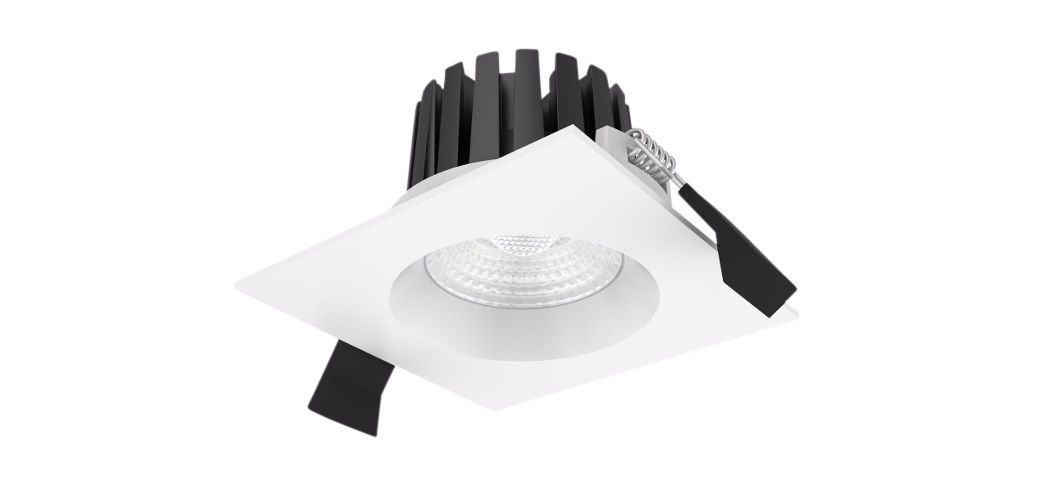

Recessed Square

3. Photometric Distribution

Direct 36 Degree

Direct 60 Degree

4. Optics

Facetted

5. Lamp Options

		Lamp			Dimensions	Cutout
Vers	Code	Wattage	CCT (K)	D or L x W	H	D1
RR	6.830	6	3000	80	40	70
RR	6.840	6	4000	80	40	70
RR	9.830	9	3000	80	40	70
RR	9.840	9	4000	80	40	70
RR	10.830	10	3000	90	50	78
RR	10.840	10	4000	90	50	78
RR	11.830	11	3000	110	65	92
RR	11.840	11	4000	110	65	92
RR	13.830	13	3000	110	65	92
RR	13.840	13	4000	110	65	92
RS	6.830	6	3000	80 x 80	40	70
RS	6.840	6	4000	80 x 80	40	70
RS	9.830	9	3000	80 x 80	40	70
RS	9.840	9	4000	80 x 80	40	70
RS	10.830	10	3000	90 x 90	50	78
RS	10.840	10	4000	90 x 90	50	78
RS	11.830	11	3000	110 x 110	65	92
RS	11.840	11	4000	110 x 110	65	92
RS	13.830	13	3000	110 x 110	65	92
RS	13.840	13	4000	110 x 110	65	92

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(Fitment type, remote)
