NEXUS D

SYSTEMS - SLOTS

Individual or continuous ribbons of light

Light Source
- LED
Light Type
- LED SELECTION
- SYSTEMS
Light Style
- ARCHITECTURAL
- SLOTS
Related Files
- Data Sheet
- Photometry

Specification Details

Mounting

Suspended
Ceiling
Individual or continuous lines

Housing

Extruded aluminium profile
Extruded aluminium insert rails
Die cast aluminium end caps
IP20

Photometrics and Optics

Direct
Trizonal (70:30)
Painted inset rails with opal PMMA optic

Light Sources

LED - SMD
LED - White 3000K & 4000K
CRI ≤ 80

Installation

Coated, adjustable, stainless steel wire suspension
Ceiling fixings

Electrical

AC 110-240V

Colours

Factory proprietary white
Factory proprietary silver grey
Black

1. Range: NEXUS D

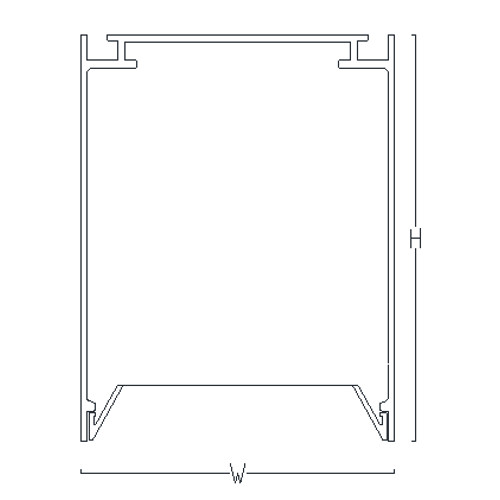

2. Mounting options & Dimensional details

Suspended

3. Photometric Distribution

Direct

Trizonal

4. Optics

Opal

5. Lamp Options

			Lamp				Dimensions		CCT
Vers.	Distribution	Code	Wattage	Type	Lumens (lm)	L	W	H	CCT (K)
C	D	15.840	15	LED	1140	570	62	82	4000
C	D	22.840	22	LED	1672	850	62	82	4000
C	D	30.840	30	LED	2280	1130	62	82	4000
C	D	38.840	38	LED	2888	1420	62	82	4000
C	D	45.840	45	LED	3420	1700	62	82	4000
C	D	52.840	52	LED	3952	1980	62	82	4000
C	D	60.840	60	LED	4560	2270	62	82	4000
S	D	15.840	15	LED	1140	570	62	82	4000
S	D	22.840	22	LED	1672	850	62	82	4000
S	D	30.840	30	LED	2280	1130	62	82	4000
S	D	38.840	38	LED	3420	1420	62	82	4000
S	D	45.840	45	LED	3952	1700	62	82	4000
S	D	52.840	52	LED	4560	1980	62	82	4000
S	D	60.840	60	LED	3080	2270	62	82	4000
S	T	22.840	22	LED	3080	570	62	82	4000
S	T	33.840	33	LED	3080	850	62	82	4000
S	T	45.840	45	LED	4173	1130	62	82	4000
S	T	57.840	57	LED	4173	1420	62	82	4000
S	T	67.840	67	LED	6260	1700	62	82	4000
S	T	78.840	78	LED	6260	1980	62	82	4000
S	T	90.840	90	LED	4173	2270	62	82	4000

All dimensions & weights stated above are nominal.

6. Ballast & Control

High frequency / Electronic

DALI Digital Addressable Lighting Interface

7. Colour

WHite

Grey

Black

8. Emergency options ( Integral & Remote)

EM3 - 3Hr Maintained Emergency conversion.

ST3 - Self Test 3Hr Maintained Emergency conversion.

AD3 - Addressable 3Hr Maintained Emergency conversion.

(For specific fitment type, integral or remote, please contact the Phi technical department )

9. Options & Accessories

RW Insert rails white

RG Insert rails silver grey

RB Insert rails black
